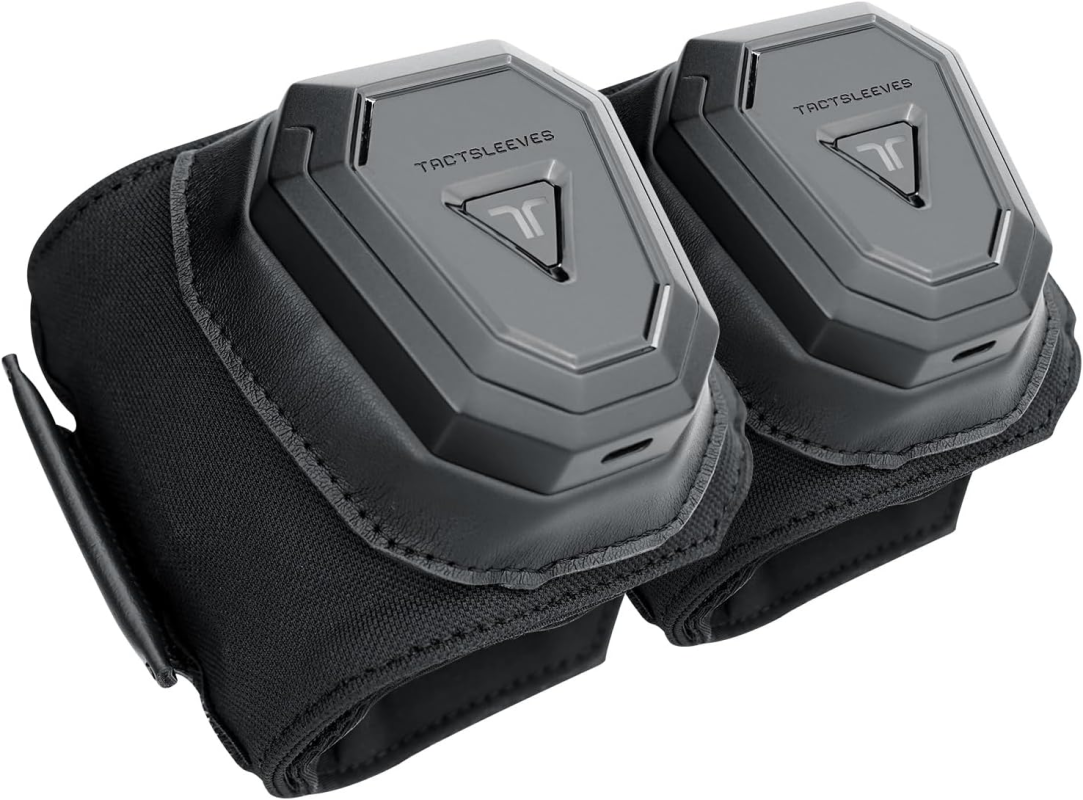

TactSleeve
Machine
•
Studio
Important Links
Description The bHaptics TactSleeve is a pair of wearable haptic sleeves for the forearms that translate digital signals into localized vibration feedback. Each sleeve contains multiple actuators that can be triggered individually or in patterns, enabling directional and intensity-based cues for interaction, training, or experimentation. In the lab, it functions as a tactile output channel, allowing sensor data, system events, or media to be rendered directly onto the body for embodied perception and feedback.
Specs
- Form factor: Adjustable forearm sleeves (left + right)
- Actuators: 3 vibration motors per sleeve (6 total)
- Feedback type: ERM vibration (intensity and pattern controlled)
- Connectivity: Bluetooth Low Energy (BLE)
- Battery life: ~10 hours (≈1.5 hour recharge)
- Control modes: SDK-based event triggering or audio-to-haptics
- Compatibility: PC, mobile, and supported VR platforms
- Fit: One-size adjustable straps
Cleanup
Surface clean only (non-washable electronics)
Safety Operating Procedure
